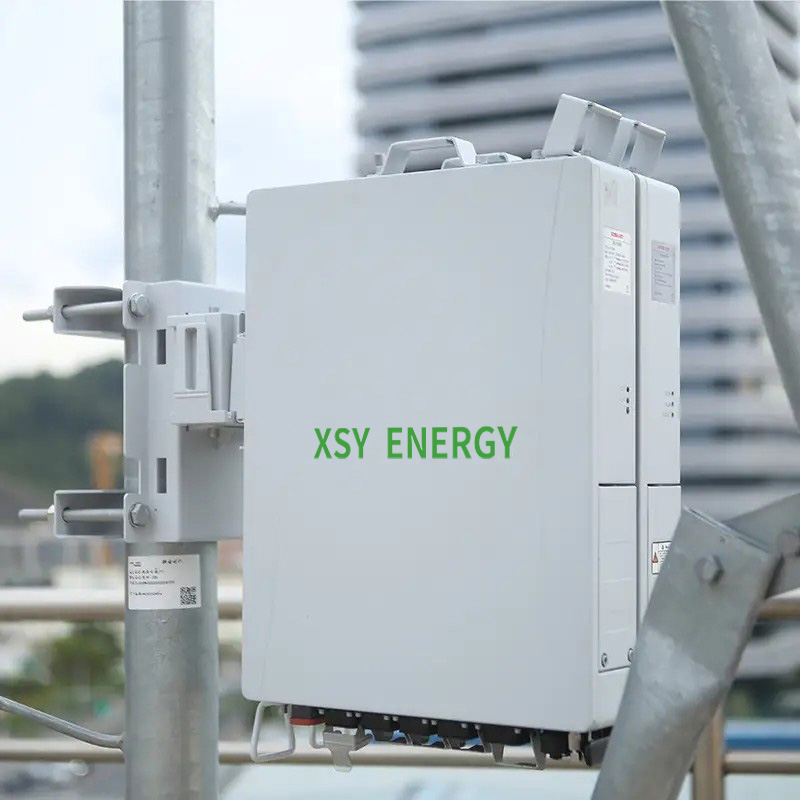

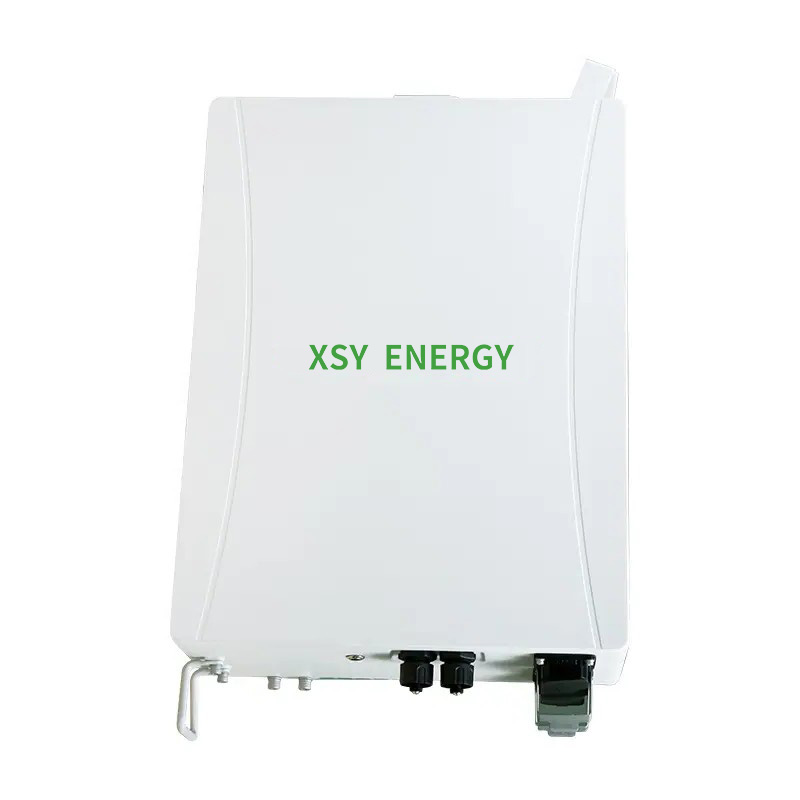

XSY -2.56kWh 50Ah 48V IP65 Outdoor Micro Station Power Price:¥

Compact Outdoor Power Supply for Telecom & Remote Applications
XSY Power storage wall is a battery that stores energy, detects outages and automatically becomes your home's energy source when the grid goes down. Your system detects outages, powers your home and electric vehicle with backup energy and automatically recharges with sunlight to keep your appliances running for days. Pair with solar and recharge with sunlight to keep your appliances running for days. Power storage wall reduces your reliance on the grid by storing your solar energy for use when the sun isn't shining. Use Power storage wall alone or combine it with other XSY products to save money, reduce your carbon footprint and prepare your home for power outages.

Online inquiry
Detailed content Specification parameter Product packaging

Item

Power Module (3000)

Battery (XSY4850)

Installation environment

Outdoor

Outdoor

Installation method

Pole/Wall

Hanging Pole/Wall

Output rated voltage

48VDC

48VDC

Rated capacity

3.0KW@200V AC

1.5KW@100V AC

50Ah/48V DC

Input voltage

Single phase 75V~300V AC

42~56.4V DC

Maximum number of connections

2

8

Dimensions

450*340*150mm

450*340*80mm

450*340*80mm

Weight

10Kg

29Kg

Protection class

IP65

Protection class

Working temperature

-40 ~ +50℃

-40 ~ +50℃

Operating Humidity Range

5% ~ 95%

5% ~ 95%

Heat dissipation method

Natural cooling

Natural cooling

Noise level

≤ 45 dB(A)

≤ 45 dB(A)

Communication interface

RS485

dry contact

AC port

1

0

DC ports

4

2
