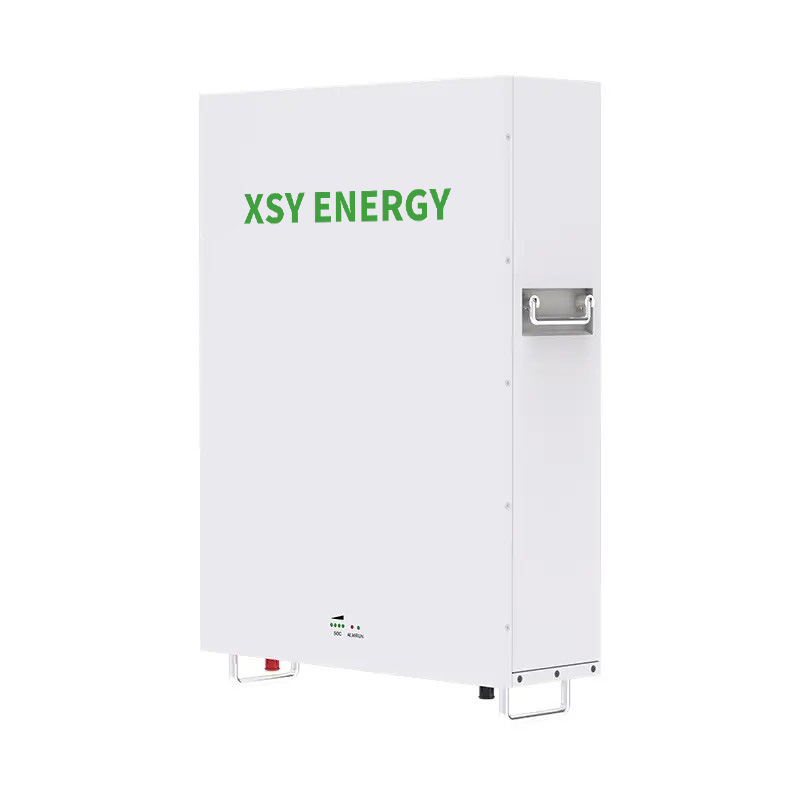

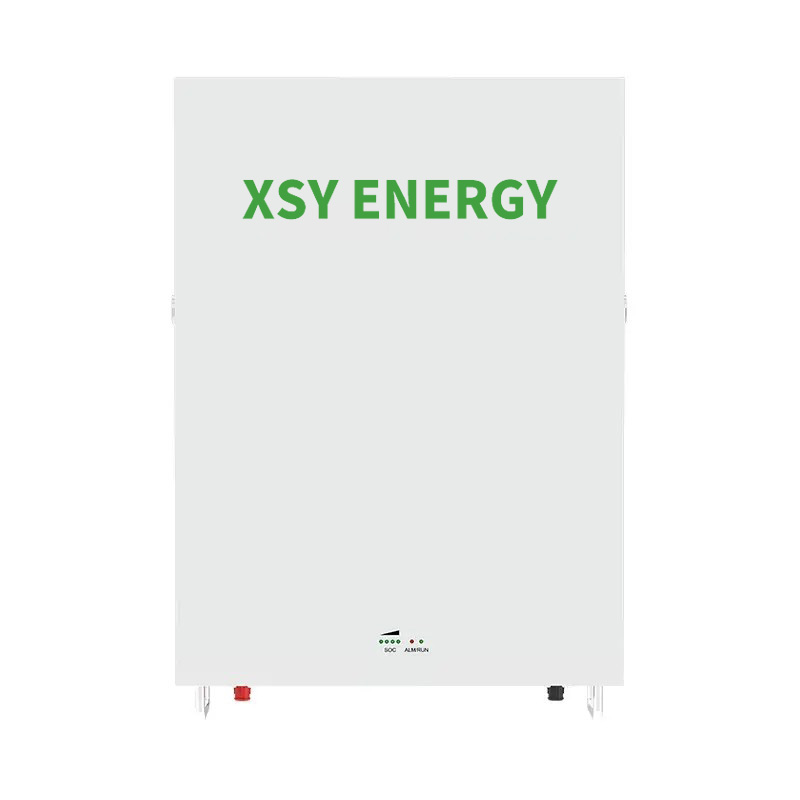

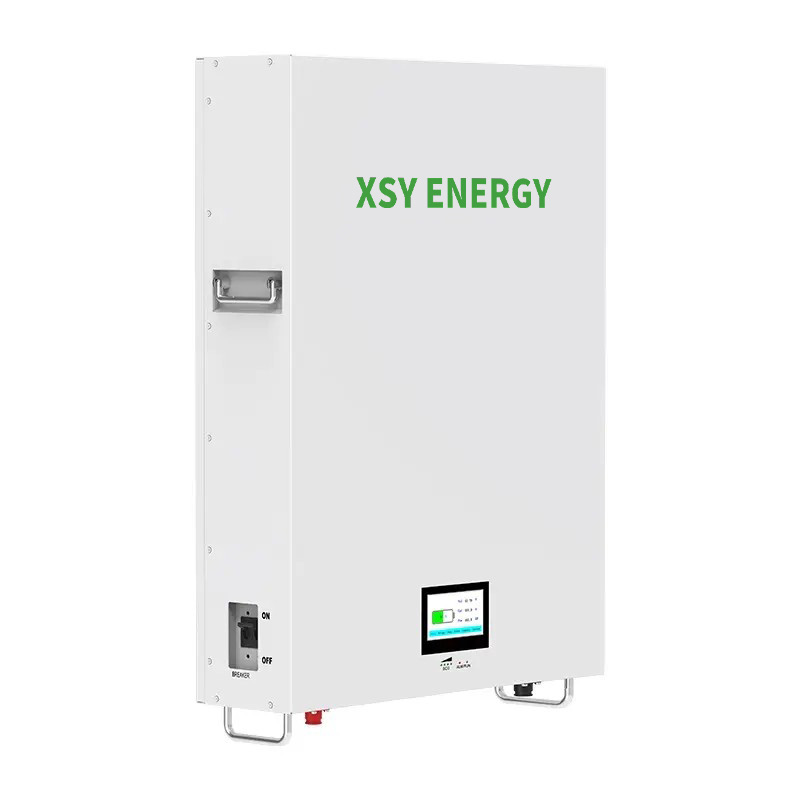

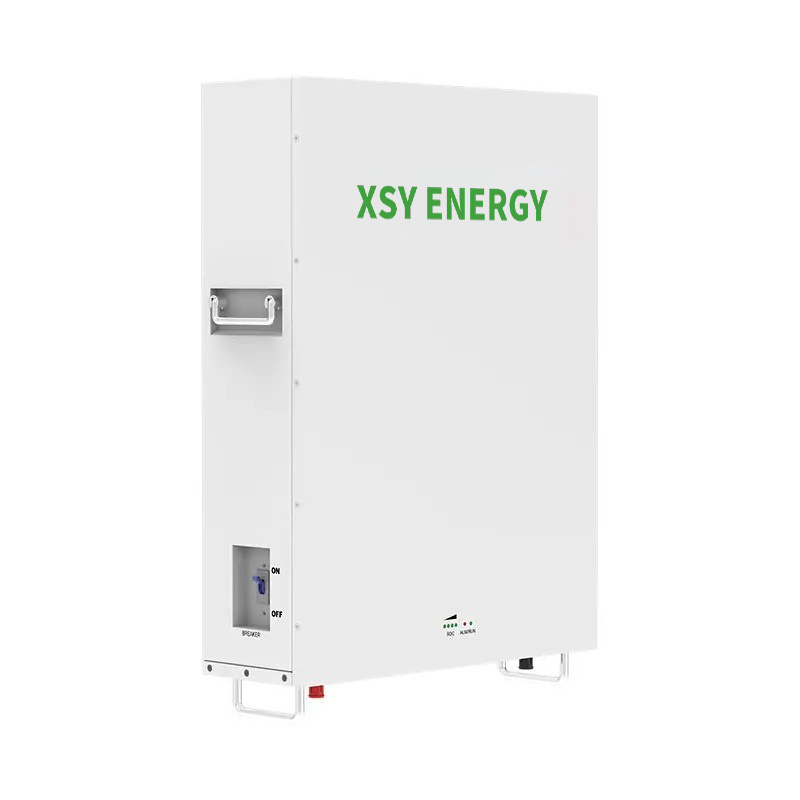

XSY-5kWh/10kWh 100Ah/200Ah 51.2V UL1973 Wall Mounted Lithium Battery Price:¥

Compact & Certified Wall-Mounted LiFePO₄ Battery for Smart Home Energy Storage
XSY Power storage wall is a battery that stores energy, detects outages, and automatically becomes your home's energy source when the grid goes down. Your system detects outages, powers your home and electric vehicle with backup energy, and automatically recharges with sunlight to keep your appliances running for days. Pair with solar and recharge with sunlight to keep your appliances running for days. Power storage wall reduces your reliance on the grid by storing your solar energy for use when the sun isn't shining. Use Power storage wall alone or combine it with other XSY products to save money, reduce your carbon footprint and prepare your home for power outages.

Online inquiry
Detailed content Specification parameter Product packaging

MODEL NO

XSY051100A-B-GBP2

XSY051200A-B-GBP2

Battery Chemistry

LiFePO4

Capacity (Ah)

100

200

Scalability

Max.16pcs in parallel (81.92kWh)

Max.16pcs in parallel (162kWh)

Nominal Voltage (V)

51.2

Operating Voltage (V)

46-56

Energy (kWh)

5.12

10.24

Usable Energy (kWh)

4.61

9.22

Charge/Discharge Current (A)

Recommend

50

100

Max.

100

150

Peak(2mins,25℃)

120

200

Other Parameter

Recommend Depth of Discharge

80%

Dimension (W/H/D,mm)

480*615*160

550*720*200

Weight Approximate (kg)

62.50

102.50

Master LED Indicator

4 LED (SOC:25%~100%)

2 LED (working, alarming, protecting)

IP Rating of Enclosur

IP20

Working Temperature

Charge:055 Discharge:-2055

Storage Temperature

0℃~35℃

Humidity

5%~95%

Altitude

≤2000m

Cycle Life (25±2,0.5C/0.5C,80%EOL)

≥6500

Installation

Wallmounted

Communication Port

CAN2.0, RS485

Warranty Period

10 years

Certification

UL1973, MSDS, UN38.3

UL1973, CE-EMC, MSDS, UN38.3
