Electrical Characteristics |
Module Type | 535M
| 540M | 545M
| 550M | 555M
|
Testing Condition | STC
| NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT |
Maximum Power (Pmax/W) | 535
| 399.9 | 540 | 403.6
| 545
| 407.4
| 550 | 411.1
| 555 | 414.8
|
Open Circuit Voltage (Voc/V) | 49.35
| 46.40
| 49.50
| 46.54
| 49.65
| 46.68
| 49.80
| 46.82
| 49.95
| 46.97 |
Short Circuit Current (Isc/A) | 13.78 | 11.14
| 13.85
| 11.20 | 13.92
| 11.25
| 13.98
| 11.31 | 14.04
| 11.35
|
Voltage at Maximum Power (Vmp/V) | 41.50 | 38.55 | 41.65
| 38.69
| 41.80 | 38.83
| 41.95 | 38.97
| 42.10 | 39.11
|
Current at Maximum Power (Imp/A) | 12.90 | 10.38
| 12.97
| 10.43
| 13.04
| 10.49 | 13.12
| 10.56 | 13.19
| 10.61 |
Module Efficiency (%) | 20.9
| 21.1
| 21.3
| 21.5
| 21.7
|
Mechanical Parameters |

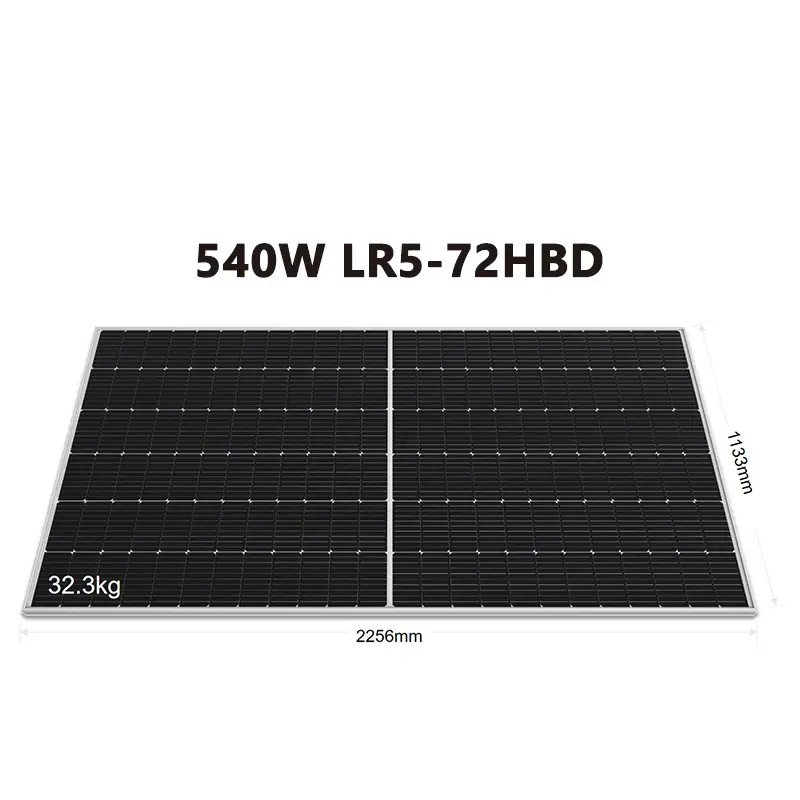

Cell Orientation | 144 (6*24) |
Junction Box | IP68, Three diodes |
Output Cable | 4mm², +400, -200mm/±1400mm length can be customized |
Glass | Single glass, 3.2mm coated tempered glass |
Frame | Anodized aluminum alloy frame |
Dimensions (LxWxH) | 2256x1133x35mm |
Weight | 27.2kg |
Packaging | 31pcs per pallet/ 155pcs per 20' GP/ 620pcs per 40' HC |
Operating Parameters |
Operational Temperature | -40°C ~ +85°C |
Power Output Tolerance | 0~3% |
Voc and Isc Tolerance | ±3% |
Maximum System Voltage
| DC1500V (IEC/UL)
|
Maximum Series Fuse Rating | 25A |
Nominal Operating Cell Temperature | 45±2℃ |
Protection Class | Class Ⅱ |
Fire Rating
| UL type 1 or 2 IEC Class C |
