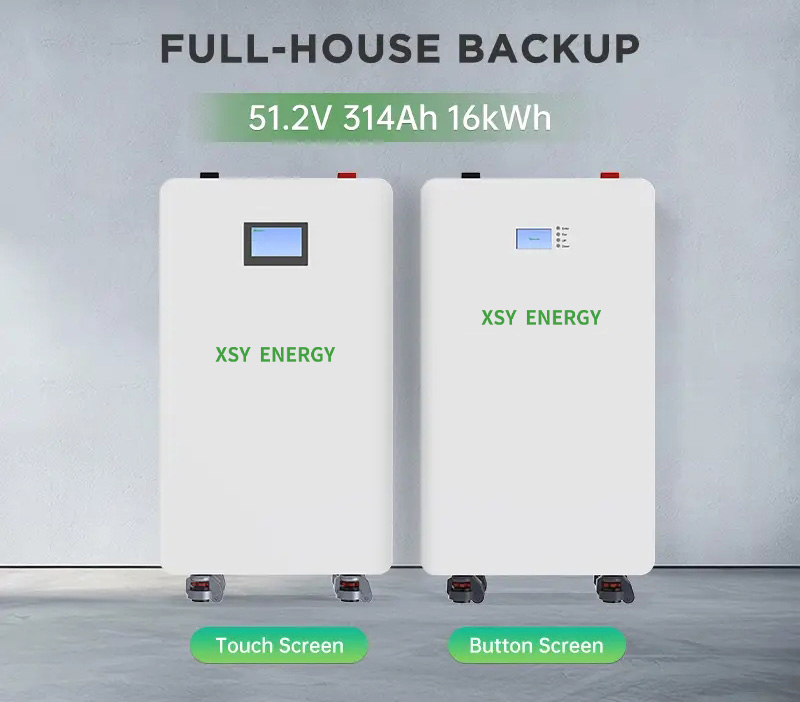

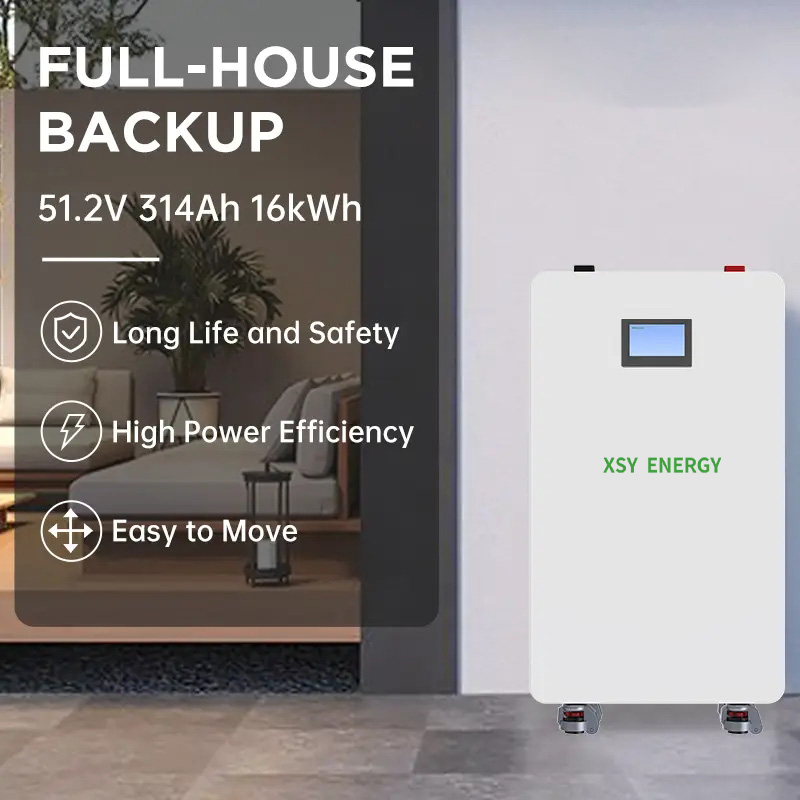

XSY Energy 51.2V 314Ah LiFePo4 battery- Mobile design for flexible energy storage

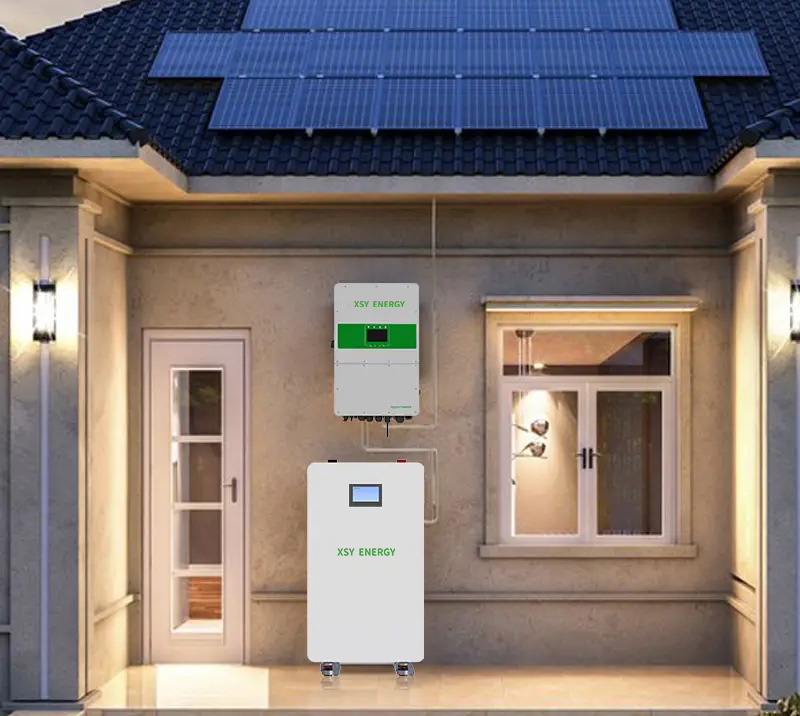

The XSY 16kWh 51.2V 314Ah LiFePO₄ battery is a high-capacity residential energy storage solution designed for solar and backup power systems. This lithium iron phosphate battery offers long cycle life, enhanced safety, and excellent performance for homes aiming to reduce grid reliance and ensure reliable power during outages. Ideal for pairing with solar inverters, this 16kWh home battery supports modular expansion and smart energy management.
The XSY Energy XSY-W-16K is a 16kWh (51.2V, 314Ah) Lithium Iron Phosphate (LiFePO4) battery designed for versatile energy storage applications, including residential, commercial, and industrial settings. Its modern, mobile design with integrated rollers ensures ease of use and placement, while advanced technology guarantees outstanding performance. Certified by CB IEC62619, CE, UN38.3, and MSDS, this battery meets global safety standards and provides 5-10 years of reliable operation, making it a trusted energy storage solution worldwide.
XSY-W-16K Power Tower Battery
Product Description
As a globally recognized lithium battery manufacturer, XSY Energy applies its expertise in battery production, BMS integration, and system design to deliver premium energy storage solutions. Certified by CB IEC62619, CE, UN38.3, and MSDS, the XSY-W-16K adheres to stringent international safety and quality standards. Trusted by users in over 138 countries, this battery sets the benchmark for high-performance, reliable energy storage.
| Battery Specifications |
| Model No | XSY-W-16K |
| Nominal Parameters |
|
| Battery Chemistry | LiFePO4 Battery |
| Voltage | 51.2V |
| Capacity | 314Ah |
| Energy | 16.08Kwh |
| Dimension (W/H/D) | 522.6*1007*343mm / 20.6*39.6*13.5 in |
| Weight Approximate | 145.5kgs / 320 lbs |
| Basic Parameters |
|
| Designed Life | 5 years |
Cycle Life
(25±2℃,0.5C/0.5C,80%EOL) | 6000 |
| Storage Time / Temperature | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C |
| Operation Temperature | -20°C to 60°C @ 60+/-25% Relative Humidity |
| Storage Temperature | 0°C to 45°C @ 60+/-25% Relative Humidity |
| Certification | CB IEC62619, CE, UN38.3, MSDS |
| IP Rating of Enclosur | IP20 |
Electrical Parameters
Operation Voltage | 46-56Vdc |
| Max. Charging Voltage | 56Vdc |
| Max. Charging Current | 150A |
| Max. Discharging Current | 150A |
| Max Power | 7680W |
WHY CHOOSE US?
Product Characteristics
As the leading vertically integrated manufacturer of lithium iron phosphate battery systems, XSY ENERGY has provided various battery solutions for nearly all kinds of ESS applications. Thanks to our self-developed core technology in cells/BMS/system design, XSY ENERGY has delivered more than 138+ countries serving 100,000+ users.
Vertical industry integration ensures more than 6500 cycles with 80% DoD. Safe Lithium iron phosphate battery cell.
Modular design gives the end customers the power of choice of capacity Deliver up to 241.2KWh with single max module (16.08KWh) at 15pcs parallel connection.
Just plug and play to minimize the installation time and cost.Compact and fashionable design fits in your sweet home environment.
Each battery with independent BMS system manages power output smartly and effectively.
Compatible with most of the available Hybrid inverters
Safety Cert：CB IEC62619, CE, UN38.3, MSDS
